产品特点
● 内置高细分
● 参数上电自动整定功能
● 光隔离差分信号输入
● 脉冲响应频率最高可达 500KHz（出厂默认 200KHz）
● 脉冲模式 /IO 模式可通过拨码随意切换
电气特性
|
说明 |
最小值 |
典型值 |
最大值 |
单位 |
|
连续输出电流 |
1.0 |
- |
10.2 |
A |
|
电源电压（直流 / 交流） |
90/70 |
110/220 |
360/253 |
Vdc/Vac |
|
逻辑输入电流 |
6 |
10 |
16 |
mA |
|
逻辑输入电压 |
5 |
5 |
24 |
Vdc |
|
脉冲频率 |
0 |
- |
200 |
KHz |
|
脉冲高电平宽度 |
1.5 |
- |
- |
US |
|
绝缘电阻 |
100 |
- |
- |
MΩ |
电流设定
|
Peak |
RMS |
SW1 |
SW2 |
SW3 |
SW4 |
|
Default[0.1A] |
on |
on |
on |
on |
|
2.10A |
1.50A |
off |
on |
on |
on |
|
2.80A |
2.00A |
on |
off |
on |
on |
|
3.50A |
2.50A |
off |
off |
on |
on |
|
4.20A |
3.00A |
on |
on |
off |
on |
|
5.00A |
3.60A |
off |
on |
off |
on |
|
5.60A |
4.00A |
on |
off |
off |
on |
|
6.20A |
4.40A |
off |
off |
off |
on |
|
6.80A |
4.80A |
on |
on |
on |
off |
|
7.40A |
5.20A |
off |
on |
on |
off |
|
8.00A |
5.60A |
on |
off |
on |
off |
|
8.50A |
6.00A |
off |
off |
on |
off |
|
8.80A |
6.20A |
on |
on |
off |
off |
|
9.30A |
6.60A |
off |
on |
off |
off |
|
9.90A |
7.00A |
on |
off |
off |
off |
|
10.2A |
7.20A |
off |
off |
off |
off |
功能设置
[SW9] 上下沿选择；
[SW10] 响应时间；
[SW11][SW12] 脉冲模式 /IO 模式选择
|
Mode sel |
SW11 |
SW12 |
|
IO 内部自发脉冲 |
on |
on |
|
电位器调速 |
on |
off |
|
双脉冲 |
off |
on |
|
脉冲 + 方向 |
off |
off |
细分设定/IO内部自发脉冲设定
|
Pulse/rev |
SW5 |
SW6 |
SW7 |
SW8 |
IO/RPM |
|
Default[400] |
on |
on |
on |
on |
10 |
|
500 |
off |
on |
on |
on |
20 |
|
800 |
on |
off |
on |
on |
30 |
|
1000 |
off |
off |
on |
on |
40 |
|
1200 |
on |
on |
off |
on |
50 |
|
1600 |
off |
on |
off |
on |
60 |
|
2000 |
on |
off |
off |
on |
80 |
|
3200 |
off |
off |
off |
on |
100 |
|
3600 |
on |
on |
on |
off |
150 |
|
4000 |
off |
on |
on |
off |
200 |
|
6400 |
on |
off |
on |
off |
250 |
|
7200 |
off |
off |
on |
off |
300 |
|
10000 |
on |
on |
off |
off |
400 |
|
20000 |
off |
on |
off |
off |
550 |
|
40000 |
on |
off |
off |
off |
650 |
|
51200 |
off |
off |
off |
off |
800 |

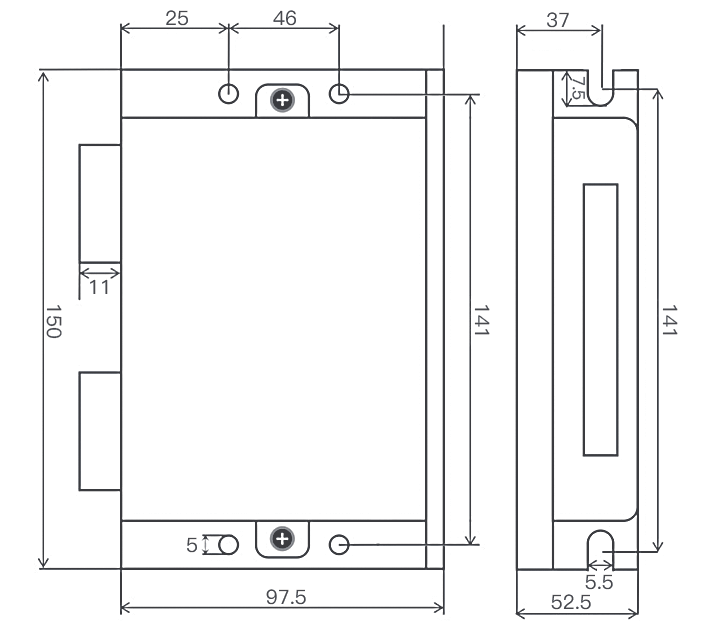

尺寸图（mm）
推荐采用侧面安装，散热效果较好。
