产品特点
● 工作电压：交流输入电压 20~75VAC，直流 30~100VDC
● 连续输出电流最大值 8.0A，最大峰值电流 10A（专业的步进服过载能力）
● 可接受差分或单端式脉冲 / 方向指令
● 每圈脉冲数（细分）可通过拔码设定
● 脉冲、方向和使能信号输入接口电平为 4.5-28V 兼容，无需串联限流电阻
电气特性
|
说明 |
最小值 |
典型值 |
最大值 |
单位 |
|
连续输出电流 |
0 |
- |
13 |
A |
|
电源电压（直流 / 交流） |
30/20 |
36/48 |
100/75 |
Vdc/Vac |
|
逻辑输入电流 |
6 |
10 |
16 |
mA |
|
逻辑输入电压 |
4.5 |
5 |
28 |
Vdc |
|
脉冲频率 |
0 |
200 |
500 |
KHz |
|
脉冲高电平宽度 |
1.5 |
- |
- |
US |
|
绝缘电阻 |
100 |
- |
- |
MΩ |
拨码设定
SW5：Motor DIR，off= CCW，on=CW;
SW6：Mode Sel，off=Foc，on=PM
Motor Sel
|
Mode sel |
SW7 |
SW8 |
|
60SC40 |
on |
on |
|
86SC45 |
off |
on |
|
86SC85 |
on |
off |
|
86SC120 |
off |
off |

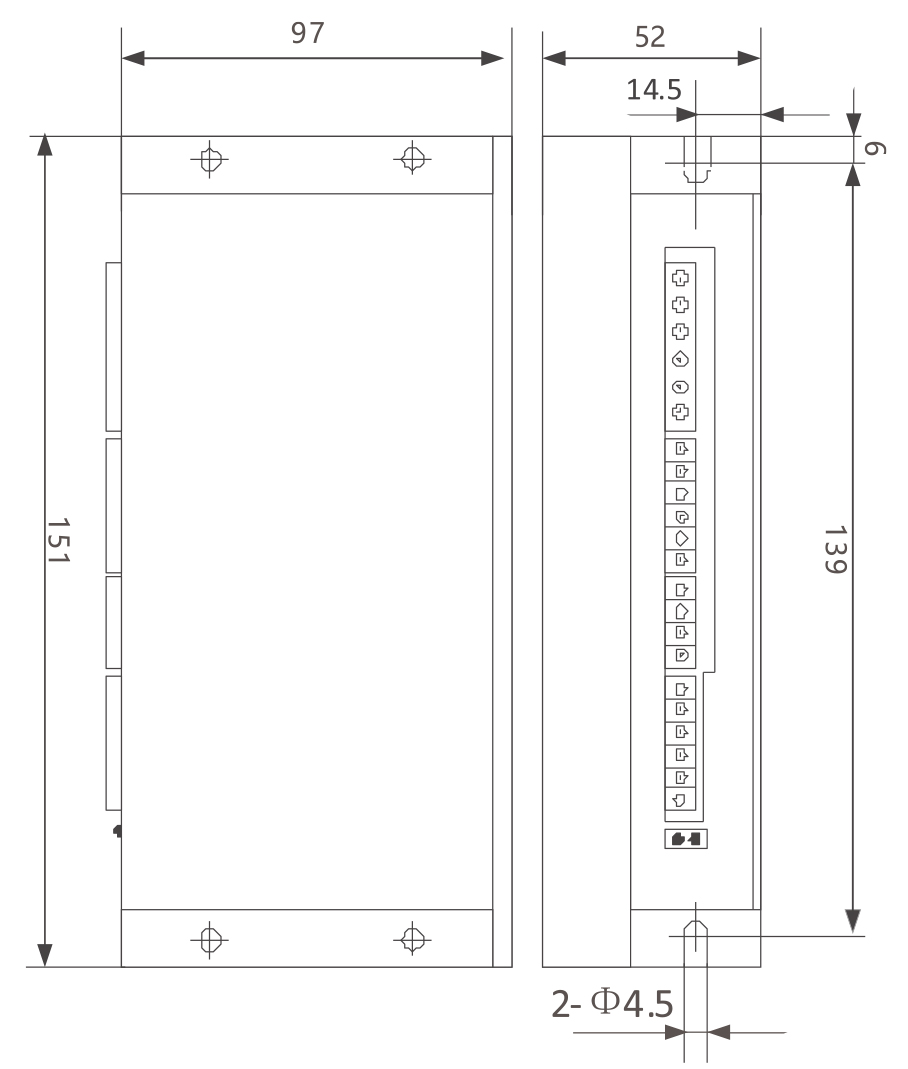

尺寸图（mm）
细分设定
|
Pulse/rev |
SW1 |
SW2 |
SW3 |
SW4 |
|
Default |
on |
on |
on |
on |
|
800 |
off |
on |
on |
on |
|
1600 |
on |
off |
on |
on |
|
3200 |
off |
off |
on |
on |
|
6400 |
on |
on |
off |
on |
|
12800 |
off |
on |
off |
on |
|
25600 |
on |
off |
off |
on |
|
51200 |
off |
off |
off |
on |
|
1000 |
on |
on |
on |
off |
|
2000 |
off |
on |
on |
off |
|
4000 |
on |
off |
on |
off |
|
5000 |
off |
off |
on |
off |
|
8000 |
on |
on |
off |
off |
|
10000 |
off |
on |
off |
off |
|
20000 |
on |
off |
off |
off |
|
40000 |
off |
off |
off |
off |
